VARIATION IN PLANNING FOR DIFFERENT TYPES OF CERVIX CANCERS
CASE STUDY NO.1

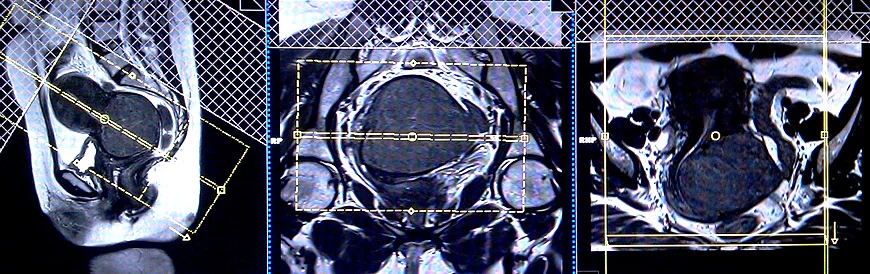

T2 tse coronal oblique 3mm
Planning for a patient with cervix malignancy.
Plan the coronal oblique slices on the sagittal plane; angle the position block parallel to the cervix and endometrium
![](/wp-content/uploads/2023/02/mri-planning-for-ca-cervix-coronal-scans.jpg)

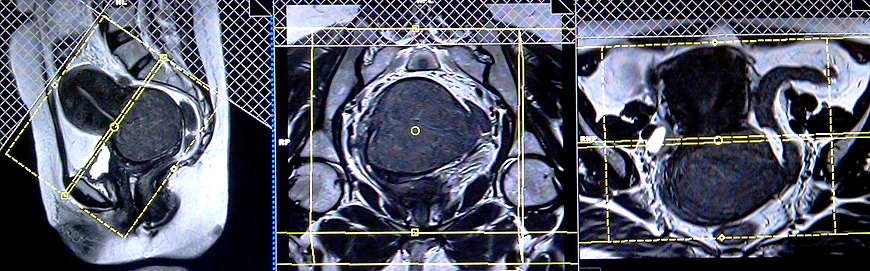

T2 tse axial oblique 3mm
Plan the axial oblique slices on the sagittal plane; angle the position block perpendicular to the cervix and endometrium
![](/wp-content/uploads/2023/02/mri-planning-for-ca-cervix-axial-scans-2.jpg)

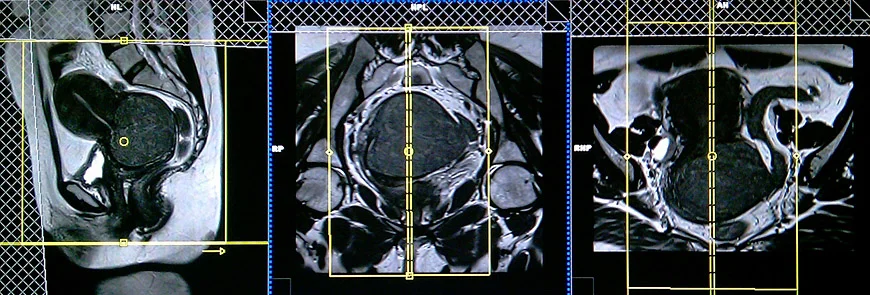

T2 tse sagittal oblique 3mm
Plan the sagittal oblique slices on the axial plane; angle the position block parallel to the cervix and endometrium
![](/wp-content/uploads/2023/02/mri-planning-for-ca-cervix-sagittal-scans-3.jpg)
CASE STUDY NO.2
T2 tse coronal oblique 3mm
Planning for a patient with cervix malignancy extending up to the endometrium.
Plan the coronal oblique slices on the sagittal plane; angle the position block parallel to the cervix and endometrium
![](/wp-content/uploads/2023/02/mri-planning-for-ca-cervix-coronal-4.jpg)
T2 tse axial oblique 3mm
Plan the axial oblique slices on the sagittal plane; angle the position block perpendicular to the cervix and endometrium
![](/wp-content/uploads/2023/02/mri-planning-for-ca-cervix-axial-5.jpg)
T2 tse sagittal oblique 3mm
Plan the sagittal oblique slices on the axial plane; angle the position block parallel to the cervix and endometrium
![](/wp-content/uploads/2023/02/mri-planning-for-ca-cervix-sagittal-6.jpg)
