VIBE(LAVA-XV/THRIVE/TIGRE) Fat Sat Post Contrast

MRI image appearance

The easiest way to identify T1 VIBE fat-saturated post-gadolinium images is to look for adipose tissues (e.g., subcutaneous fat and fat in bone marrow) and blood vessels in the body (e.g., arteries and veins in the chest, abdomen, upper limbs, and lower limbs). Areas containing adipose tissues appear dark on T1 VIBE fat-saturated post-gadolinium images. Blood vessels and pathologies with high vascularity appear bright on T1 VIBE fat-saturated post-gadolinium images. All other characteristics of the T1 VIBE fat-saturated post-gadolinium images remain the same as the T1 VIBE images.

Tissues and their T1 VIBE fat saturated post gadolinium appearance

Fluids : – dark (Ureters and bladder appear as bright due to the contrast excretion)
Bone marrow : – dark
Muscles- gray
Kidneys :- bright
Liver :-bright
Spleen :- bright
Pancreas :- bright
Bowel walls :- bright
Prostate :- bright
Uterus:- bright
Moving blood : – bright
White matter : – whiter
Gray matter : – gray
Bone : – dark
Fat : – dark
Air : – dark

Use

Pathological appearance

Pathologies with adipose tissue content will appear dark on T1 VIBE fat-saturated post-gadolinium images (e.g., lipoma). Pathologies with hypervascularization will appear bright on T1 VIBE fat-saturated post-gadolinium images (e.g., tumors like hemangioma, lymphangioma, hemangioendothelioma, Kaposi sarcoma, angiosarcoma, hemangioblastoma, etc., and inflammatory processes like discitis, meningitis, synovitis, arthritis, osteomyelitis, etc.). Pathological processes with no vascularity will remain unenhanced (appearing dark on T1 VIBE fat-saturated post-gadolinium images).

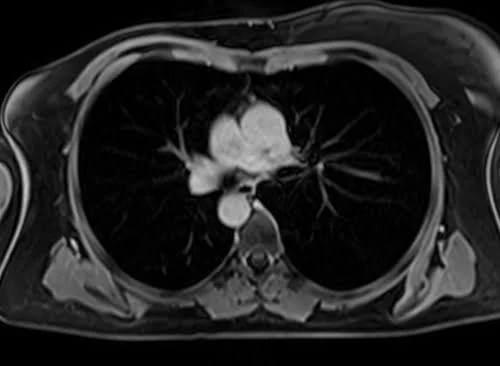

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN CHEST IMAGING

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN CHEST IMAGING

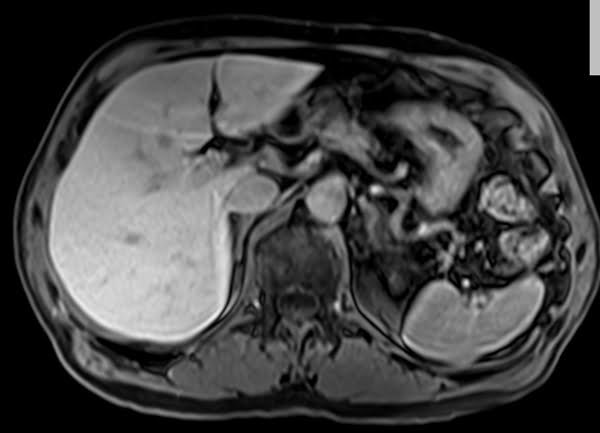

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN LIVER IMAGING

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN LIVER IMAGING

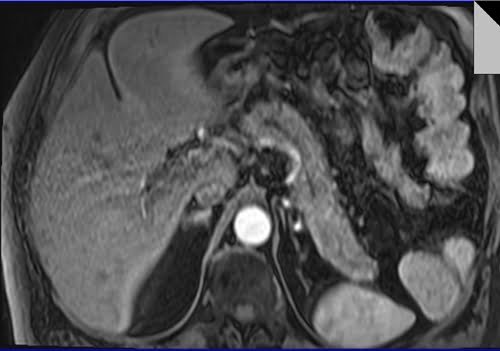

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN PANCREAS IMAGING

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN PANCREAS IMAGING

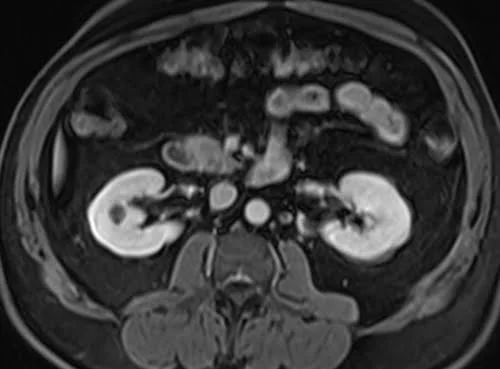

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN RENAL IMAGING

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN RENAL IMAGING

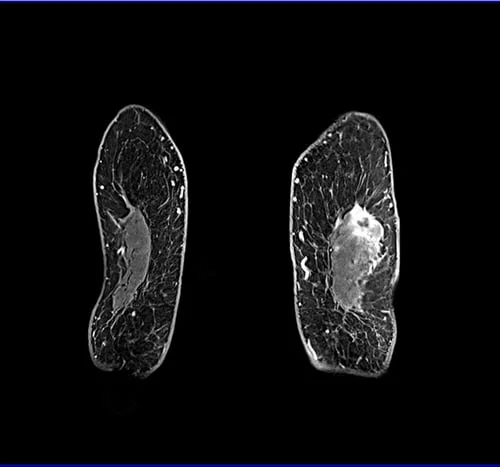

VIBE FAT SAT Coronal POST CONTRAST SEQUENCE USED IN BREAST IMAGING

VIBE FAT SAT Coronal POST CONTRAST SEQUENCE USED IN BREAST IMAGING

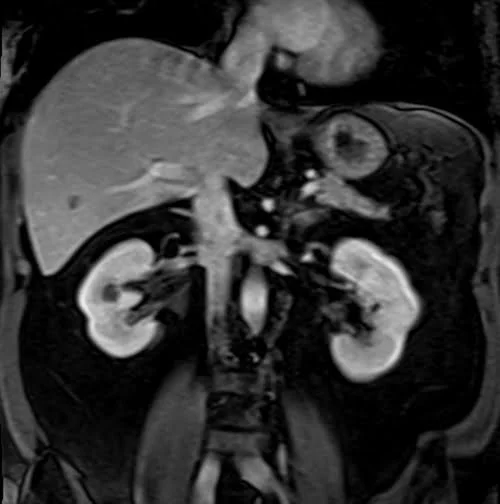

VIBE FAT SAT CORONAL POST CONTRAST SEQUENCE USED IN KIDNEYS IMAGING

VIBE FAT SAT CORONAL POST CONTRAST SEQUENCE USED IN KIDNEYS IMAGING

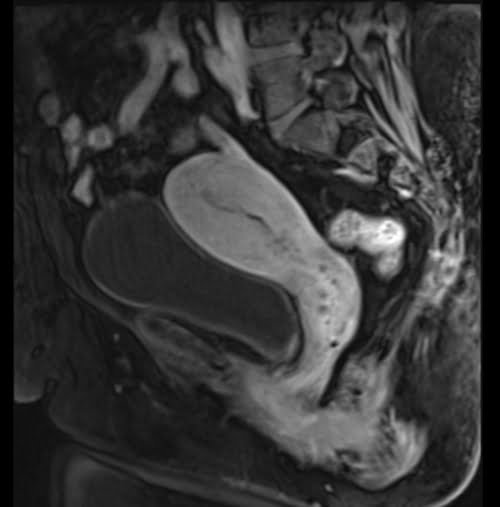

VIBE FAT SAT SAGITTAL POST CONTRAST SEQUENCE USED IN GYNECOLOGICAL PELVIS IMAGING

VIBE FAT SAT SAGITTAL POST CONTRAST SEQUENCE USED IN GYNECOLOGICAL PELVIS IMAGING

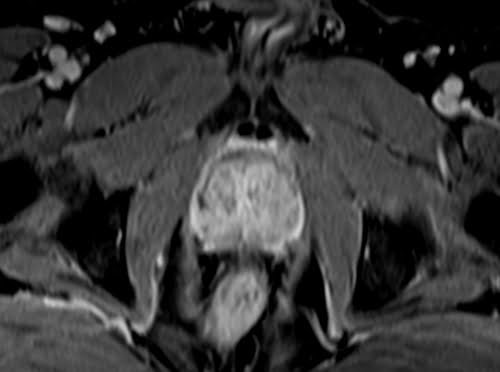

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN PROSTATE IMAGING

VIBE FAT SAT AXIAL POST CONTRAST SEQUENCE USED IN PROSTATE IMAGING

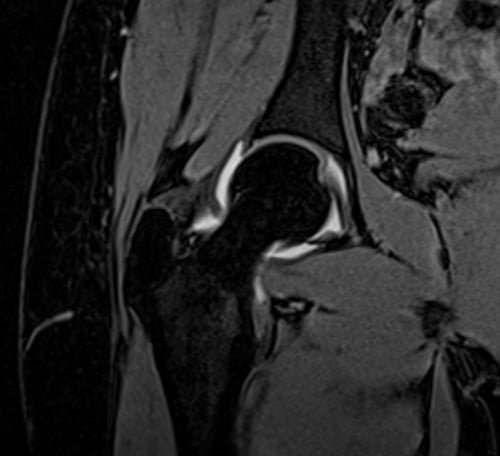

VIBE FAT SAT CORONAL POST JOINT INJECTION SEQUENCE USED IN HIP ARTHROGRAPHY IMAGING

VIBE FAT SAT CORONAL POST JOINT INJECTION SEQUENCE USED IN HIP ARTHROGRAPHY IMAGING

VIBE FAT SAT AXIAL POST JOINT INJECTION SEQUENCE USED IN SHOULDER ARTHROGRAPHY IMAGING

VIBE FAT SAT AXIAL POST JOINT INJECTION SEQUENCE USED IN SHOULDER ARTHROGRAPHY IMAGING
